The insulation pins stud welder is a stud welder used specifically for welding insulation pins. A stud cd welder is a machine that welds metal studs or similar parts onto a workpiece by applying instantaneous pressure and discharge, welding the entire end face of the stud to the workpiece. The spring pressure in the welding gun presses the stud into the molten pool, forming a metal recrystallization connection.
This video shows you how the CD Capacitor Discharge Insulation Pin Welding Machine works.
The insulation nail welding machine is primarily used for welding insulation nails. The welded insulation nails are designed to secure insulation materials like rock wool, glass wool, and others. Depending on the type of insulation material, different types of insulation nails are selected. Additionally, different welding guns of the welding machine are suitable for accommodating different types of insulation nails, making it versatile for different welding applications.
IKING SB-1250 is a capacitor welding machine specially developed for welding insulation nails. Equipped with an SRQ3 or SRQ4 welding gun, it can weld cupped head weld insulation nails or CD weld pins. If you want to know more details about the welding machine, please click the following picture or contact us directly.

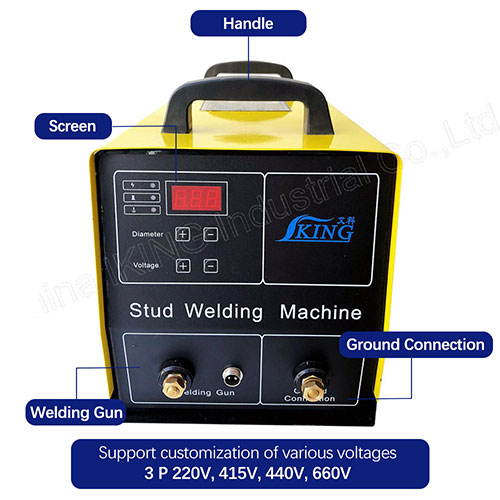

IKING SB-1250 CD Welding Machine | |
![]() |
|

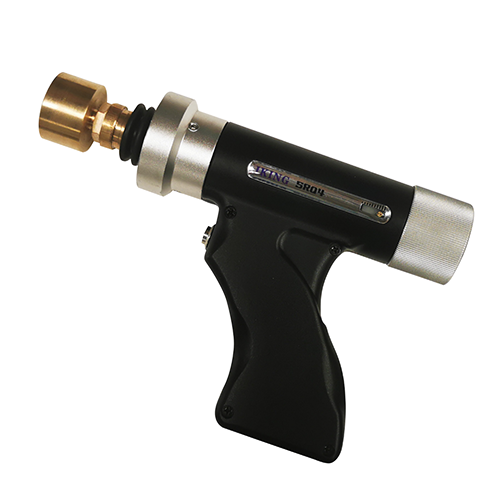

SRQ3 CD Welding Gun | SRQ4 CD Welding Gun |
![]() |
![]() |
Cupped Head Weld Insulation Nails | CD Welding Pins |

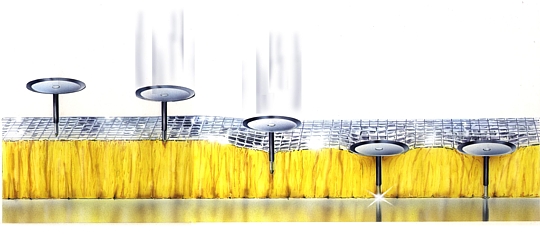

Cup Head Insulation Pin Welding |

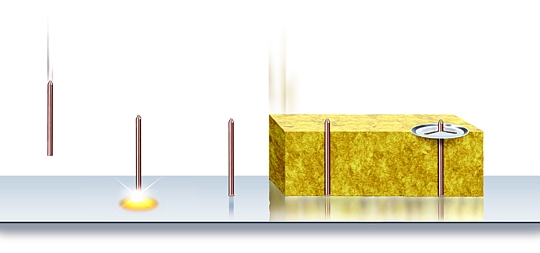

Drawn ARC Insulation Pin Welding |
|
|
