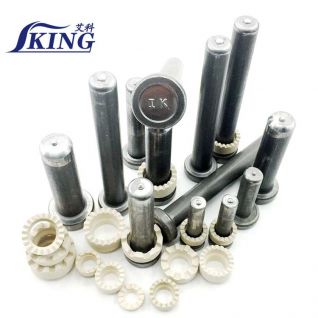

Shear Stud

shear connectors

Shear connectors also called shear studs, concrete anchors, are used in composite steel construction to tie the concrete to steel members and resist shear forces between the concrete slab and steel members. They are widely used in steel building, bridges etc. Welding Through Metal Deck are available for this stud, for this option, special ceramic ferrule type UFT are recommended. IKING's shear connectors meet the following standards:

Standard	Symbol	Material	Mechanical Properties
ISO 13918:2017	SD1	S235J2G3+C450	Yield point	(ReH) min.	350N/mm2
			Tensile Strength	(Rm) min.	450N/mm2
			Elongation	(A5) min.	15%
AWS D1.1:2015	Type B	ASTM A29 1010-1020	Yiled strength (0.2% offset) psi	psi min. MPa min	51,000 350
			Tensile Strength	psi min. MPa min	65,000 450
			Elongation	% in 2 in min.	20%
			Elongation	% in 5x dia. Min.	15%
			Reduction of area	% min.	50%
AWS D1.5:2015	Type B	ASTM A108 1010-1020	Yiled strength (0.2% offset) psi	psi min. MPa min	50,000 345
			Tensile Strength	psi min. MPa min	60,000 415
			Elongation	% in 2 in min.	20%
			Reduction of area	% min.	50%
AS/NZS 1552.2:2003	N/A	AS 1443 1010-1020	Yiled strength (0.2% offset)	MPa min.	345
			Tensile Strength	MPa min.	410
			Elongation	% on 5.65√So min.	12%
			Reduction of area	% min.	50%
BS 5400:2005	N/A	SWRCH 18A	Yiled strength (0.2% proof stress)	MPa min.	385
			Tensile Strength	MPa min.	495
			Elongation	% on 5.65√So min.	18%
GB/T 10433:2002	N/A	ML15 ML15Al SWRCH 15A	Yiled strength (0.2% proof stress)	MPa min.	320
			Tensile Strength	MPa min.	400
			Elongation	% in 5x dia. Min.	14%
JIS B 1198-1995	N/A	SWRCH15A	Yiled strength (0.2% proof stress)	MPa min.	235
			Tensile Strength	MPa	400-500
			Elongation	% on 5.65√So min.	20%
