Short Cycle Stud Welder
Short Cycle Stud Welder Short Cycle Stud Welder Short Cycle Stud Welder

Short Cycle Stud Welder

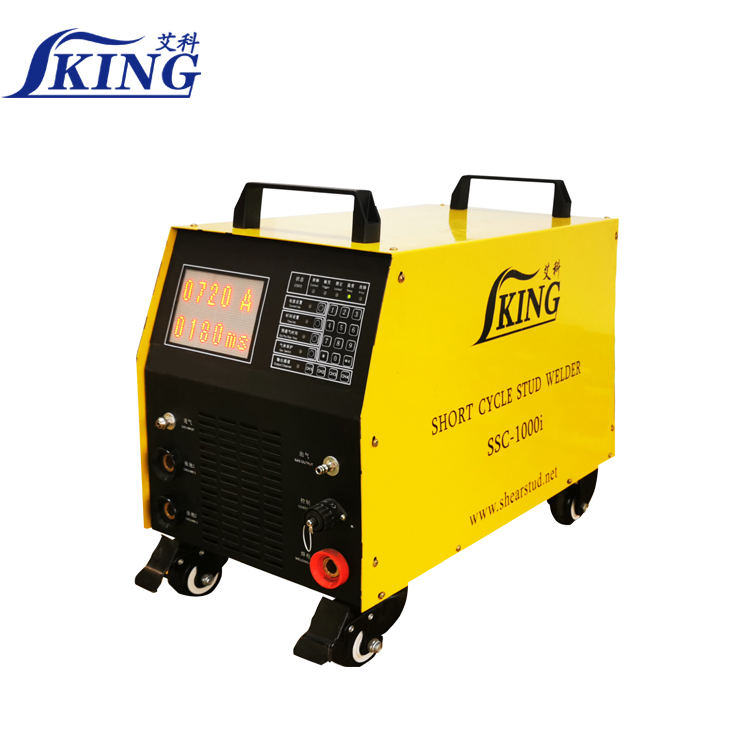

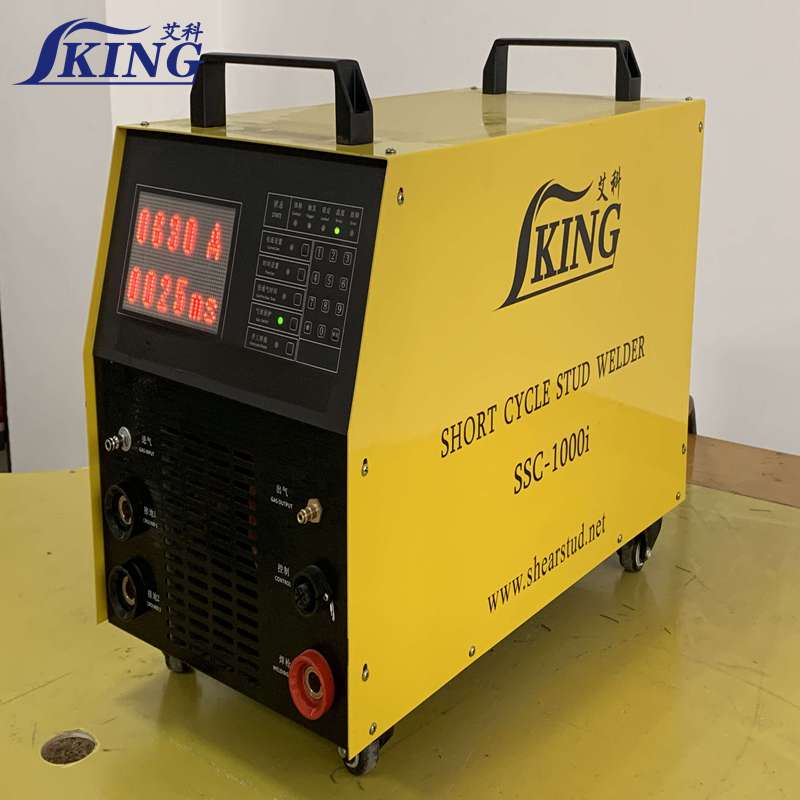

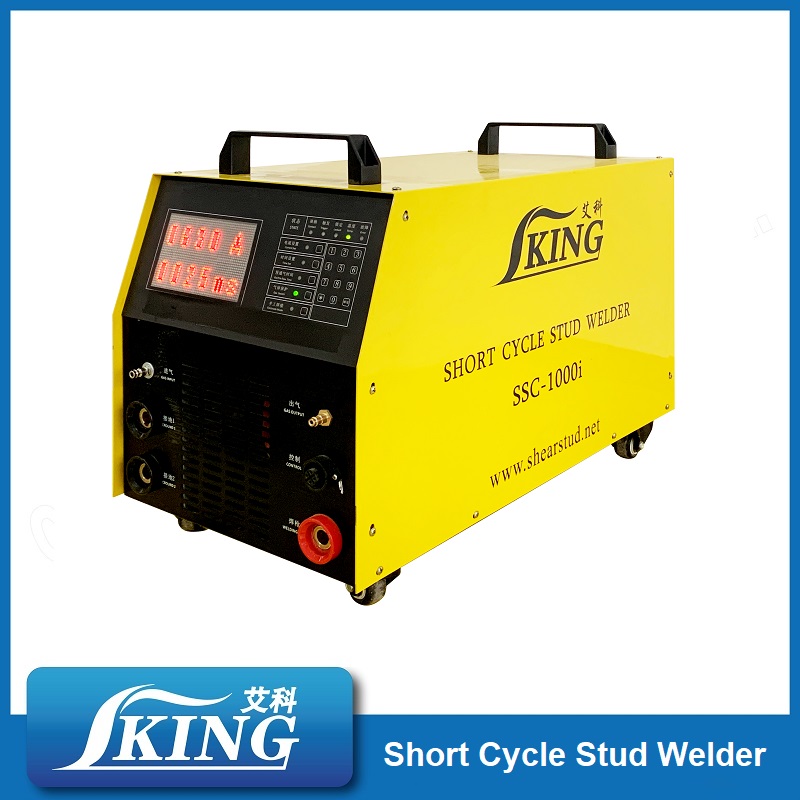

Product ID : SSC-1000i
Product Tags :
Product Attributes :

1.) For welding short cycle stud, welding range 3-8mm

2.) For welding gas shielded type DA stud, welding range 3-12mm



Strong robust construction



Infinitely adjustable time



Constant 750 amp weld current



Size: 325*265*480mm



Weight: 52kg



Available with gas kit as standard



Welding stud range: 3-12mm, Length: 100mm or extended to any length based on customers' requirments.

Product Description

What is Short Cycle Stud Welding?

Short cycle stud welding is a quicker form of the drawn arc stud welding process for attaching metal studs and other fasteners to metal sheets. It only takes from 10 up to 100 milliseconds to attach the stud to the parent sheet using this method. CD weld studs can be used but, unlike CD stud welding, this process is suitable to use on slightly thicker sheet metals that are uneven or have imperfections. By bringing together elements of the DA and CD processes, Short Cycle proves to be a very effective method for applications where the parent material is thinner than what DA stud welding can tolerate, but you don’t require the full DA process to still get great results.



Short cycle is similar to drawn arc stud welding in many respects, as it requires three-phase power and a 415-volt power supply. However, this process is much faster and does not use a ferrule. Plus, the equipment and studs you can use for SC are much cheaper than those for DA. On the other hand, it can’t use weld studs as large as those used in Drawn Arc and is suited to thinner parent materials, so choosing SC stud welding really depends upon your setup!

Drawn Arc Stud Welder For Welding Short Cycle Studs











DA7

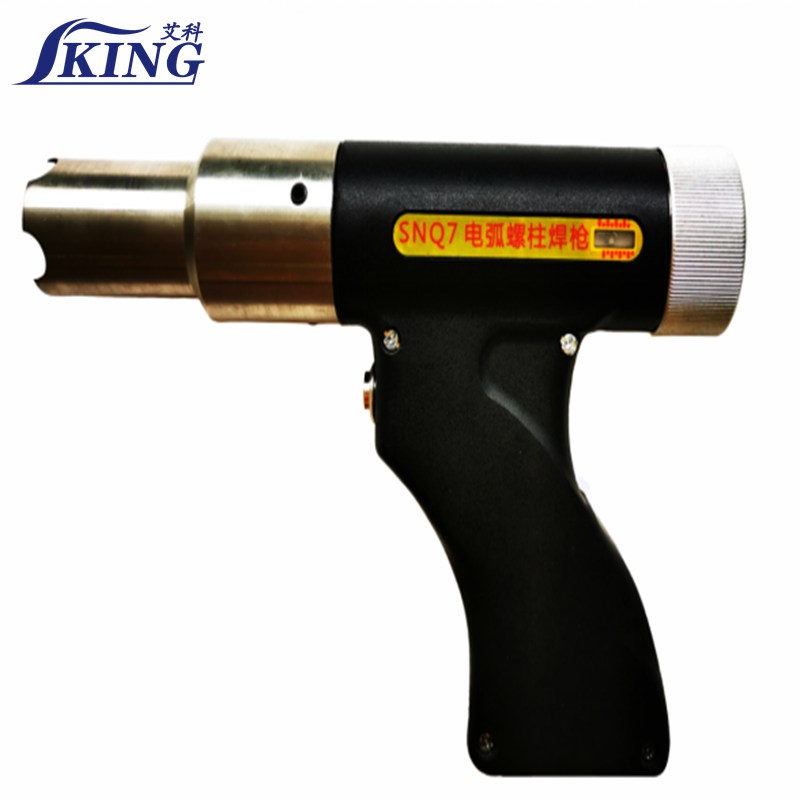

SSC-1000i -7 PISTOL/GUN/TORCH

1.) For welding short cycle stud, welding range 3-8mm



2.) For welding gas shielded type DA stud, welding range 3-12mm

DA8



SSC-1000i -8 PISTOL/GUN/TORCH

1.) For welding short cycle stud, welding range 3-8mm

2.) For welding gas shielded type DA stud, welding range 3-12mm



Strong robust construction



Infinitely adjustable time



Constant 750 amp weld current



Size: 325*265*480mm



Weight: 52kg



Available with gas kit as standard





Welding stud range: 3-12mm, Length: 100mm or extended to any length based on customers' requirments.
