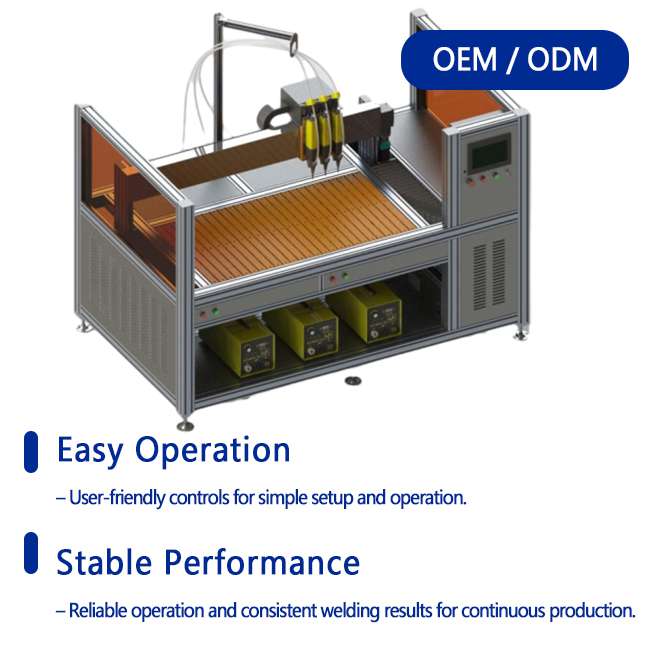

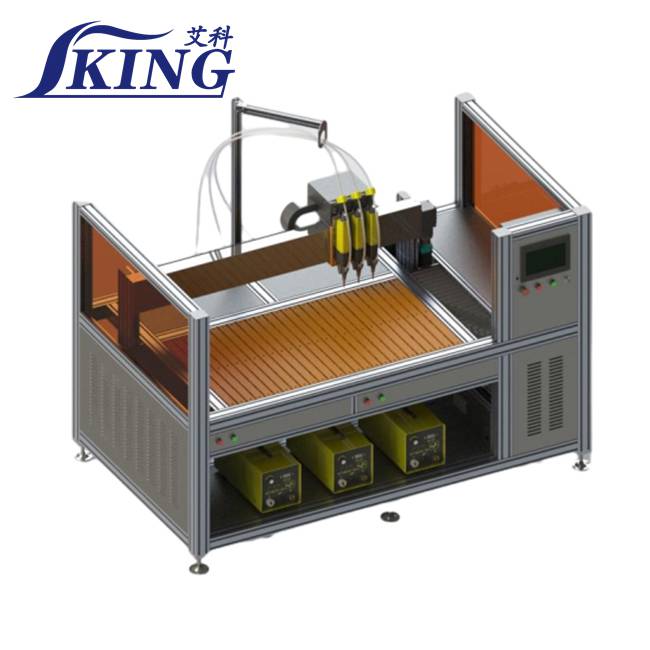

IKING PLC Automatic Stud Welding Machine
Custom Automatic Stud Welding Machine for Tactile Paving Discs & Industrial Parts
High-efficiency automatic stud welding machine powered by a precise PLC control system and servo positioning, engineered by IKING for welding threaded studs onto tactile paving discs, tactile indicator studs, and sheet metal components.
- Smart PLC Control & Touchscreen: High welding precision and easy parameter adjustments.

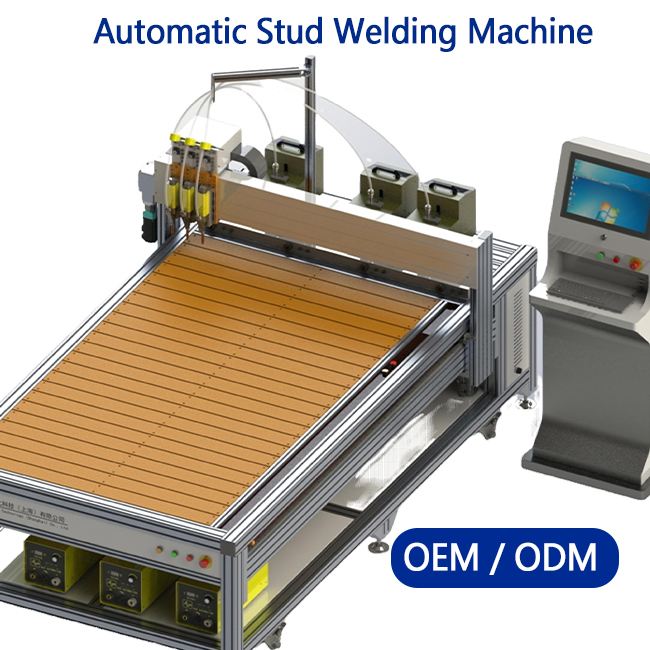

- Versatile Configurations: Available in automatic or semi-automatic models, with automatic stud feeding and single or multi-gun options.
- Custom Engineering: Tailored worktables, fixtures, and machine dimensions to fit your exact production needs.
Looking for custom automated welding solutions? Contact IKING today with your drawings or specifications for a tailored quote!

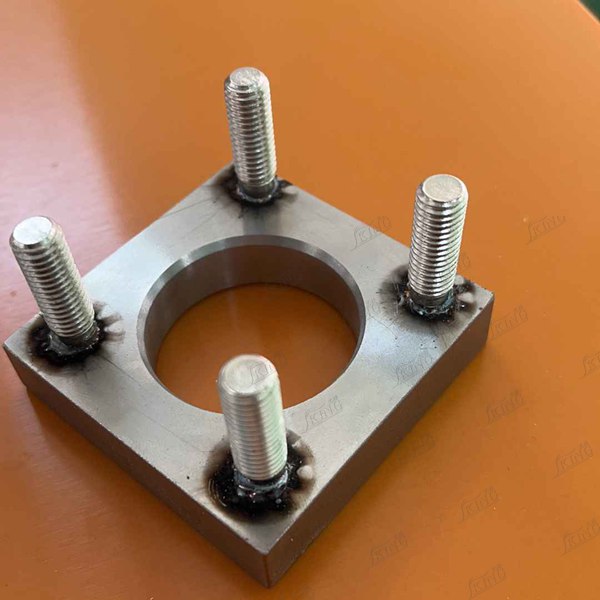

Custom Automatic Stud Welding Machine for Sheet Metal Processing & Industrial Fabrication
Boost production efficiency and eliminate manual positioning errors. Powered by a precise PLC control system and servo positioning, IKING's Automatic Stud Welding Systems deliver ±0.05mm precision for sheet metal enclosures, cabinets, stainless steel panels, and industrial metal components.
Technical Specifications
Main List of Mechanical Specifications and Platform Dimensions
Key Performance Features
Engineered for high-volume, high-precision industrial production
Intuitive PLC Interface
Touchscreen operation with recipe memory to minimize operator setup time and eliminate human errors.
30m/min High Efficiency
Significantly boosts production output, reduces cycle times, and cuts manual labor costs by up to 60%.

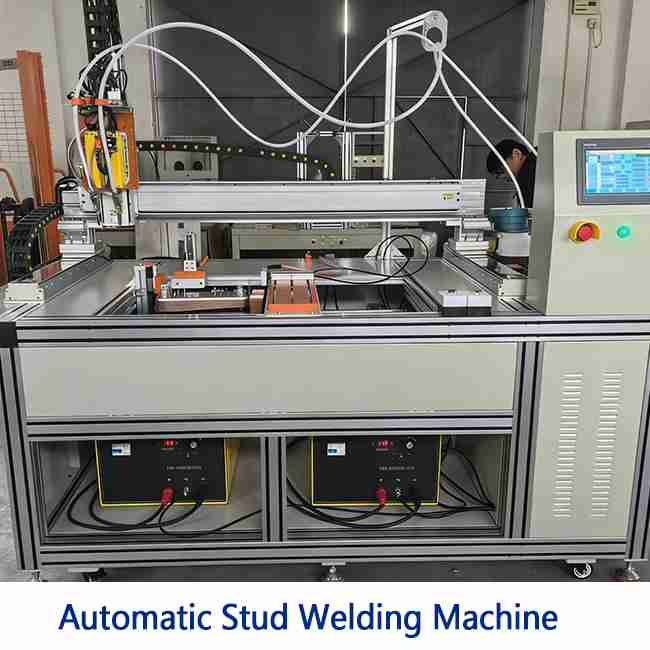

±0.05mm Servo Positioning
High-precision absolute servo drives ensure zero-defect stud alignment and consistent automatic feeding.
100% Weld Strength Quality
Delivers strong, deformation-free welds that easily pass international tensile and torque standards.
Automatic Stud Feeding
Continuous feeder system designed for high-volume automated assembly lines.
Custom Worktable & Fixtures
Tailor-made pneumatic clamping & fixtures built directly to your CAD drawings.
Single or Multi-Gun Support
Scalable configurations to weld multiple stud diameters simultaneously.
Customization Options
Flexible configurations built to exact production requirements
Flexible Manufacturing Capacity
IKING can customize the automatic stud welding machine according to your workpiece dimensions, stud specifications, welding positions, target production volume, and available workshop space.

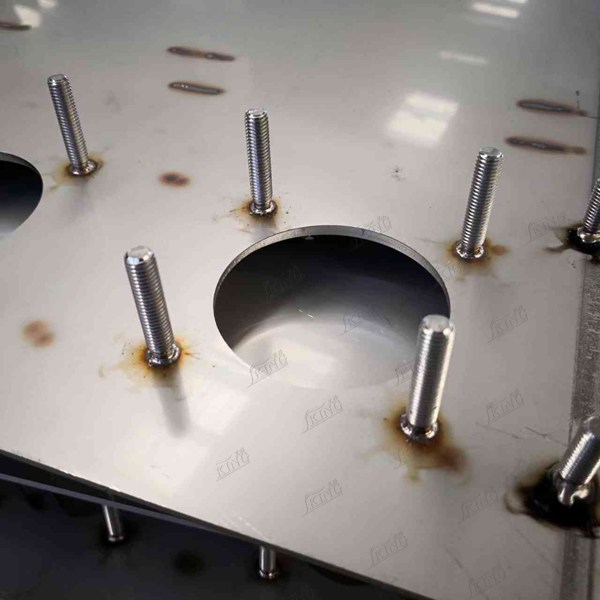

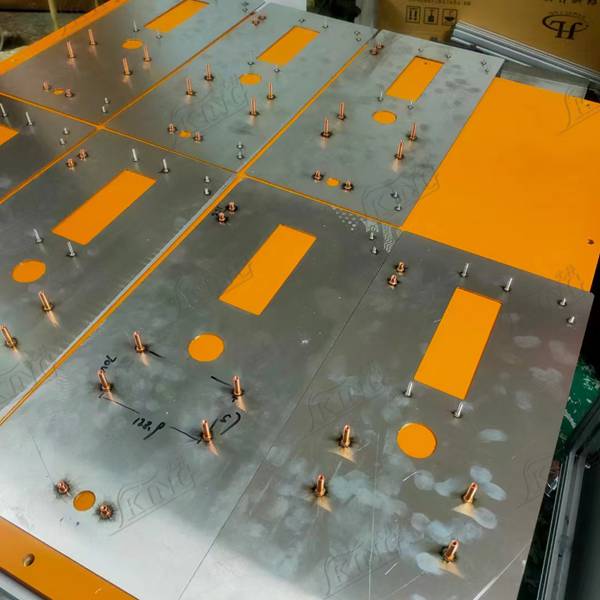

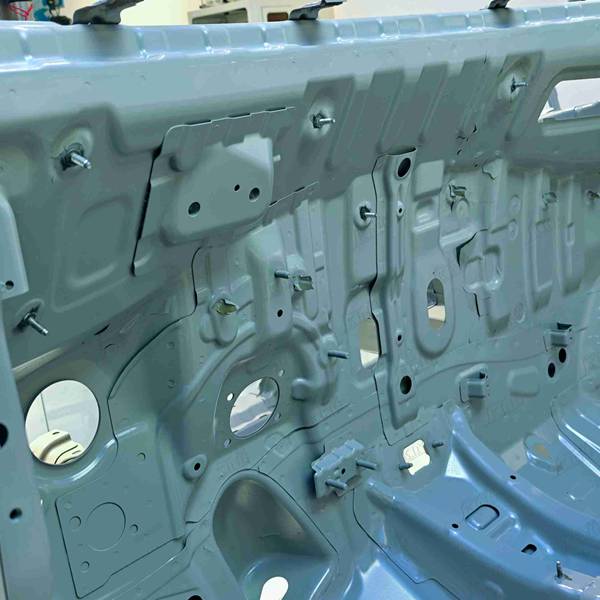

Target Applications
Versatile solutions engineered for diverse industrial manufacturing sectors
Custom Automation Engineering Case
German Customer | Automatic Threaded Stud Welding Solution
IKING developed a PLC-controlled automatic stud welding line for a German manufacturer to weld threaded studs onto stainless steel rings and flanges.
The customized automatic stud welding system integrates automatic material loading, servo positioning, and automatic welding for accurate placement and consistent quality.
✓ Demonstrates IKING's expertise in providing custom industrial machinery for complex global manufacturing applications.
Why Choose IKING?
Your reliable industrial partner for complete stud welding automation
Custom Engineering
Machine configuration is tailored to your specific workpiece, welding pattern, and production requirements.
Complete Welding Solution
IKING supplies both stud welding machines and welding fasteners, providing a seamless single-source experience.
OEM & ODM Support
Customized worktables, fixtures, welding guns, feeding systems, and machine sizes are fully supported.
1-Year Warranty & Global Support
IKING provides a 1-year warranty and reliable technical after-sales support for overseas projects.
Ready to Upgrade Your Production Line?
Need a tailor-made automatic welding solution for your factory?
Send us your CAD drawings, material type, stud specs, and target output for a free feasibility analysis and fast quotation!
Get Custom CAD Layout & Rapid Quote
