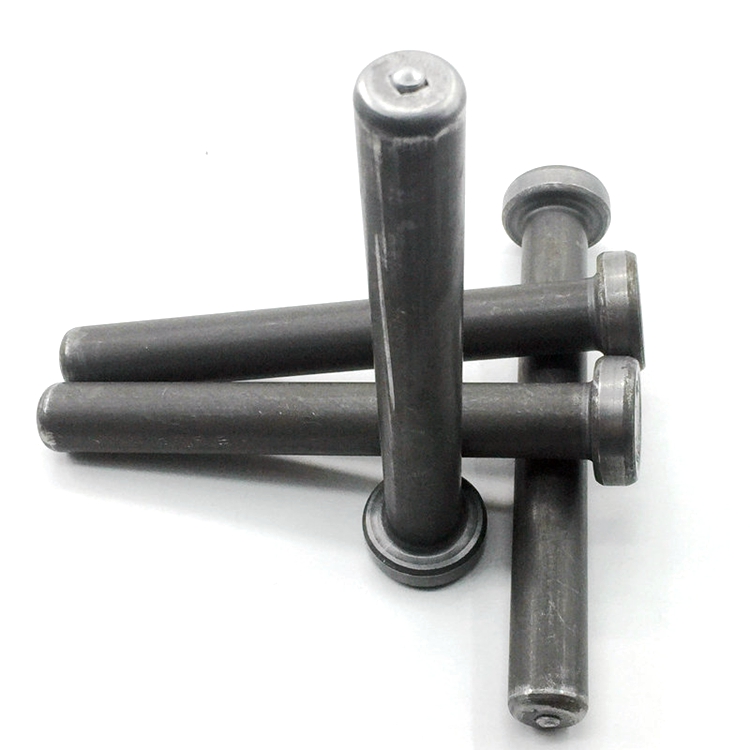

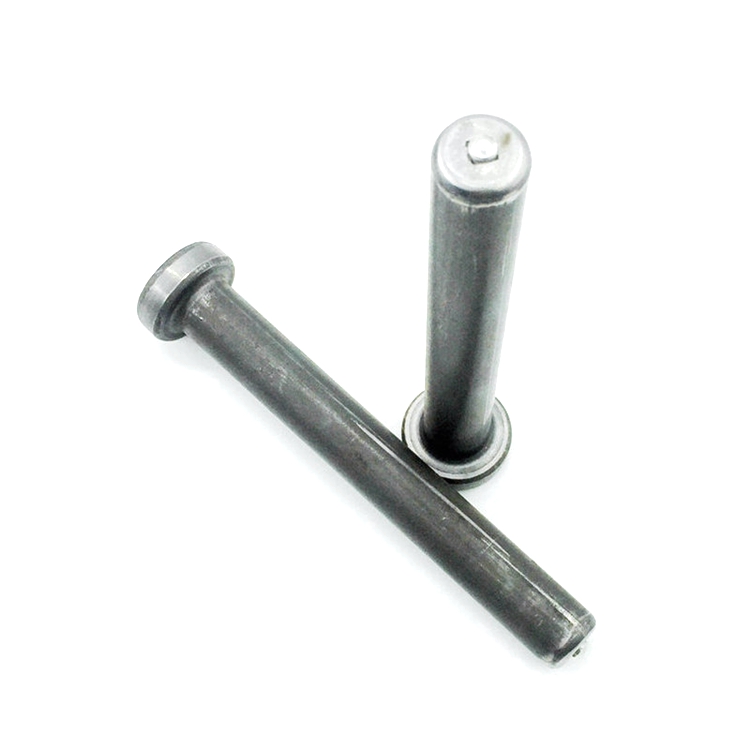

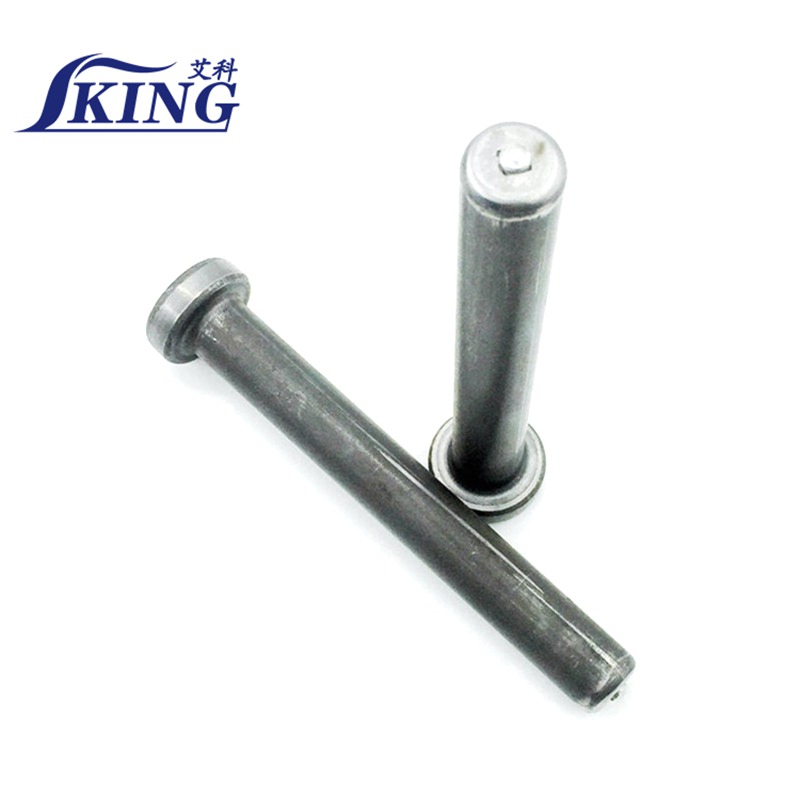

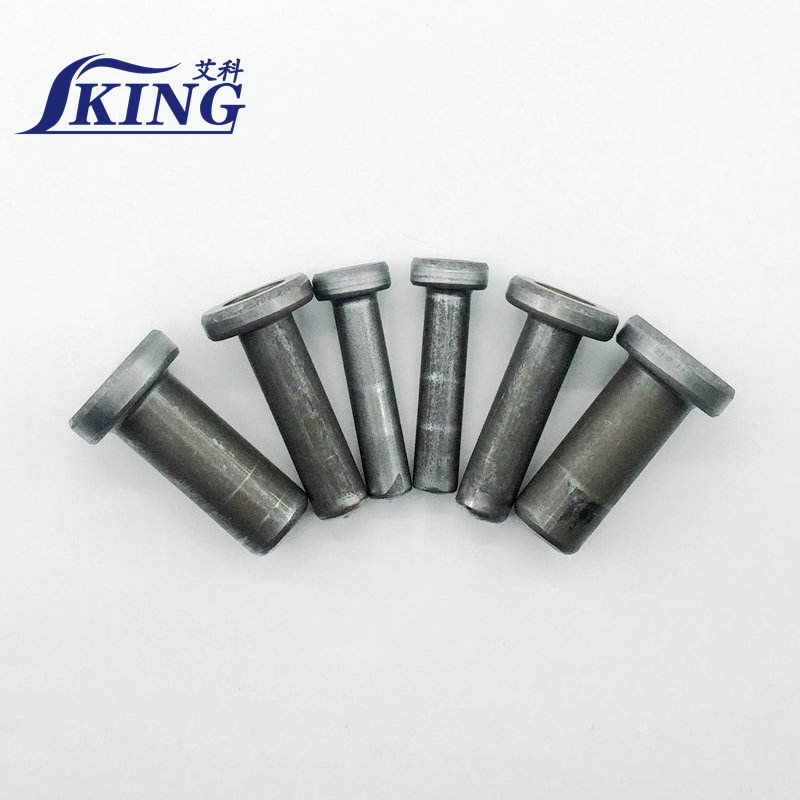

Headed Shear Stud for Composite Steel Structures

IKING manufactures high-quality headed shear stud products designed to create strong mechanical connections between structural steel members and reinforced concrete. Our headed stud shear connectors are manufactured in accordance with ISO 13918, AWS D1.1 and international construction standards, providing outstanding welding performance, excellent tensile strength and long-term durability.

As a professional shear connector supplier, IKING offers a complete range of diameters and lengths suitable for bridges, high-rise buildings, steel structures, industrial plants and composite floor systems. Combined with our stud welding equipment and ceramic ferrules, we provide complete shear connector stud welding solutions for contractors, fabricators, and distributors worldwide.

Why Choose IKING Headed Shear Studs?

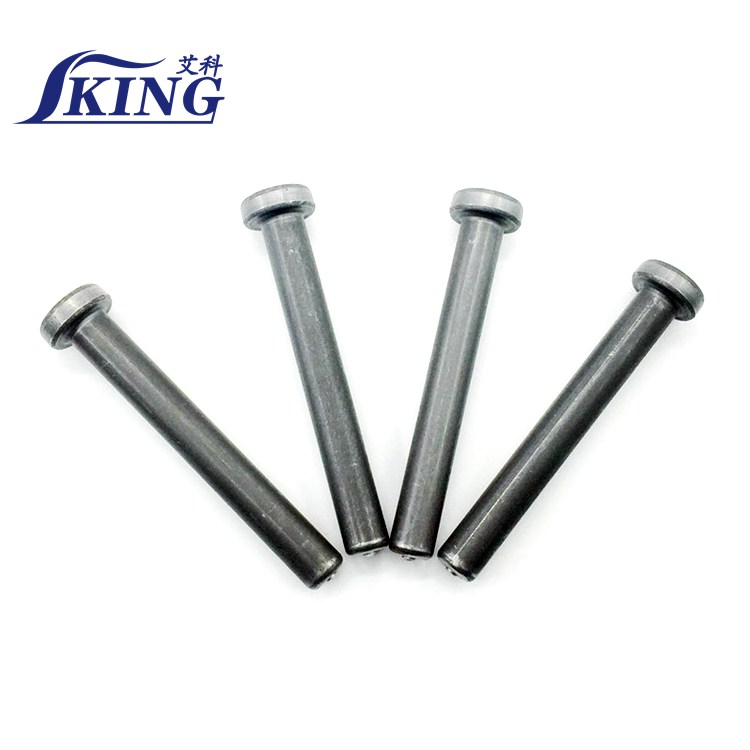

1. Manufactured to International Standards

Produced according to ISO 13918 and AWS D1.1 specifications for reliable structural performance.

2. Excellent Welding Performance

Each stud is equipped with an aluminum flux tip to ensure stable arc ignition and consistent weld quality.

3. High Mechanical Strength

Manufactured from premium low-carbon steel with excellent tensile strength and ductility for demanding structural applications.

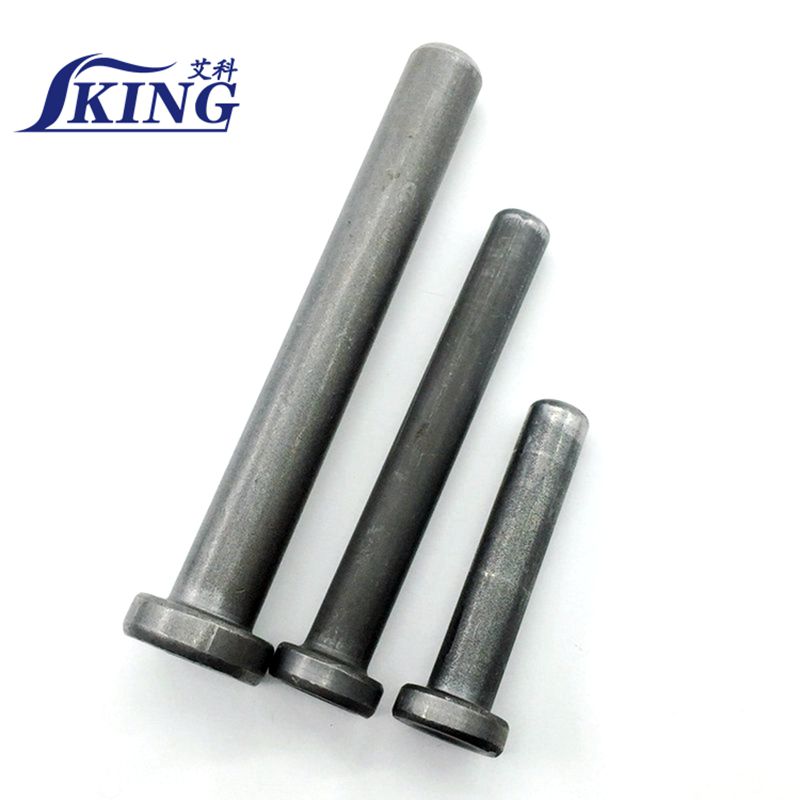

4. Multiple Sizes Available

Standard diameters from 10mm to 25mm, including the industry's most commonly used 13mm, 16mm, 19mm, 22mm and 25mm.

5. OEM & Custom Manufacturing

Customized dimensions, head markings, packaging, and surface finishes are available according to project requirements.

6. Factory Direct Supply

Competitive pricing, stable production capacity, and worldwide export experience.

Product Features:

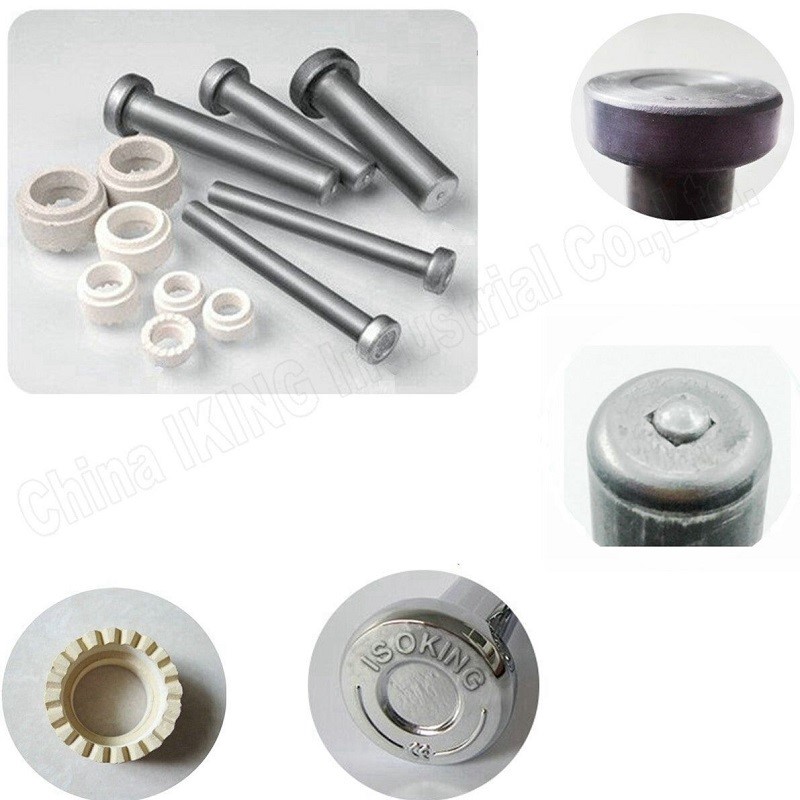

1. 1. Made of high-quality low-carbon headed steel wire, ensuring shear studs' mechanical properties and welding properties, with no cracks on the studs' heads.

2. 2. High-precision multi-station cold forming machine ensures high precision and constant shear stud dimensions, with a round chamfer at the end of the studs.

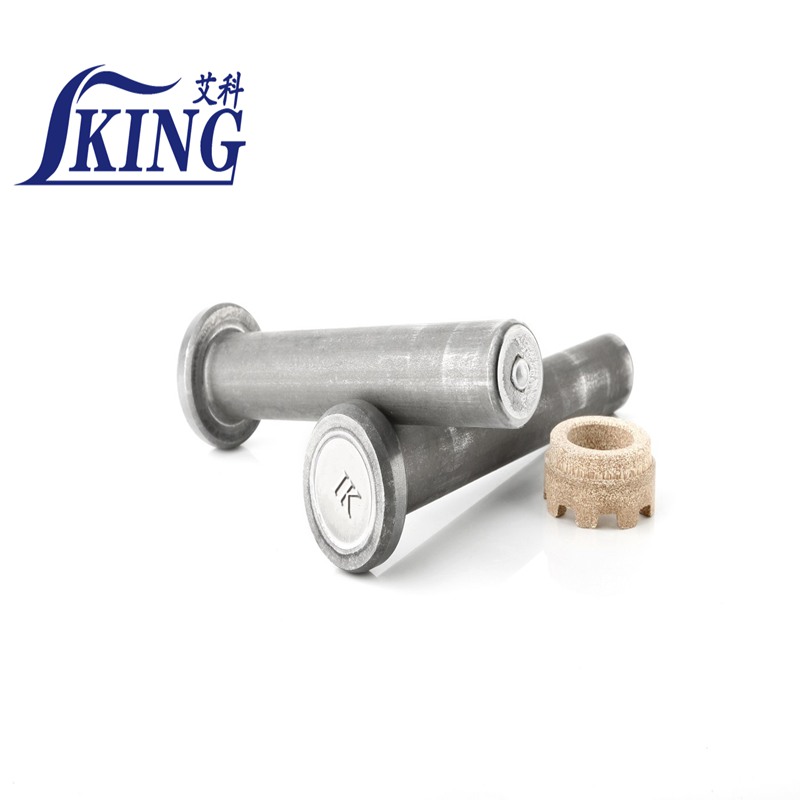

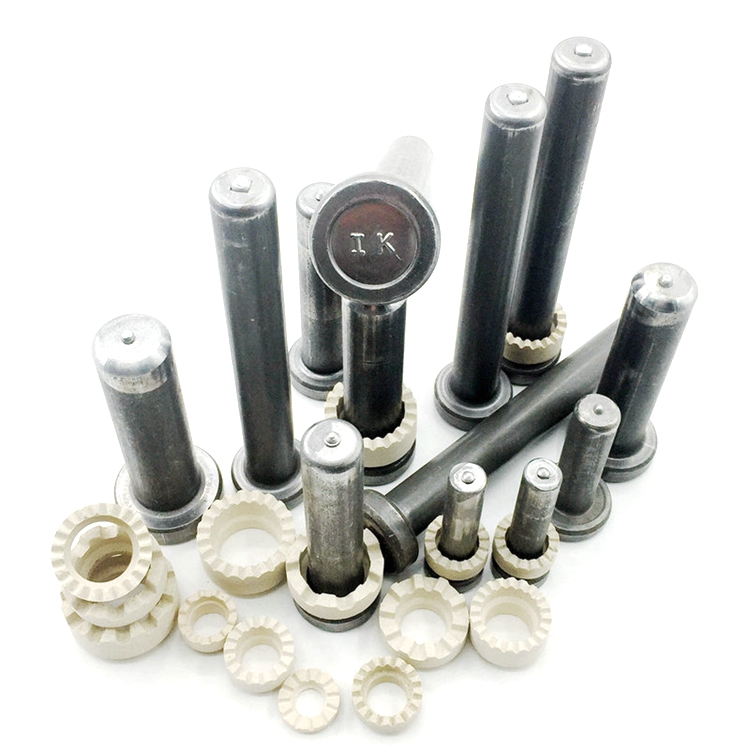

3. 3. High-precision dimensions make the shear studs easy to load into the welding gun chuck and hold tightly; a flat weld end with a round chamfer makes the shear studs easy to insert into the ceramic ferrule hole, and get a 360-degree perfect weld collar.

4. 4. Accurate calculated aluminium flux embedded by unique equipment automatically, ensuring the welding quality and avoiding cavities in the welding bead.

Surface Treatment:

IKING shear connectors use high-quality low-carbon steel processed by pickling and phosphating, ensuring the studs have long time anti-rust condition.

Applications

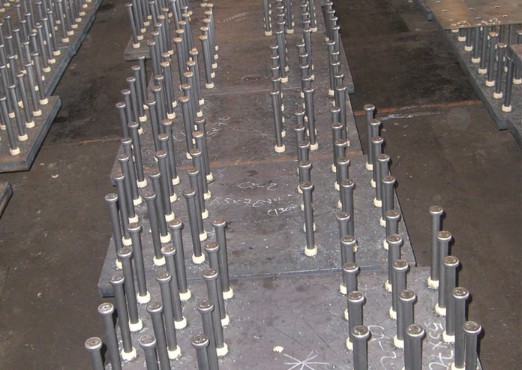

Typical Applications of Headed Stud Shear Connectors

IKING headed stud shear connectors are widely used in composite steel construction where reliable shear transfer between steel and concrete is required.

Typical applications include:

• Composite steel beams
• Composite floor deck systems
• Steel bridge construction
• High-rise buildings
• Industrial workshops
• Power plants
• Offshore structures
• Shipbuilding
• Heavy steel fabrication

Welding Process

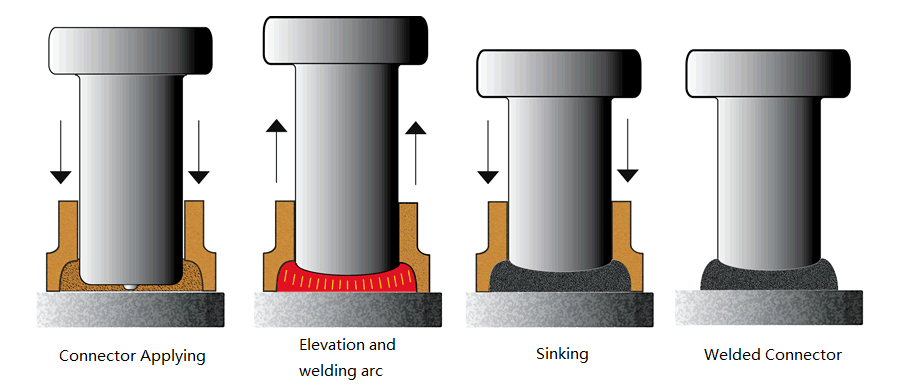

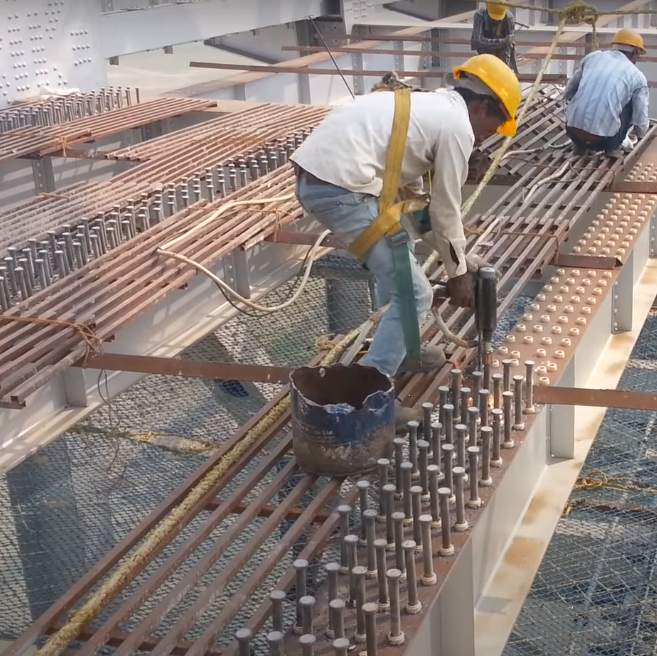

Drawn arc stud welding for shear connectors can be done mechanically or automatically, using welding guns or welding heads. The shear stud is inserted into the stud holder and – fitted with a ceramic ferrule, if necessary – applied to the work piece. At the beginning of the welding process, the stud is lifted by the mechanism and, normally, first a pilot arc, then the main arc, are struck between the tip of the shear stud and the work piece. This causes the face of the stud and the parent material to melt. When the welding time has elapsed, the shear stud is plunged with little force (< 100 N) into the molten pool, and the current source is switched off. The ceramic ferrule is then removed. The figure shows the sequence of events using a ceramic ferrule.

FAQ

What is a headed shear stud?

A headed shear stud is a welded fastener designed to connect steel beams with concrete slabs, creating composite structural action and improving load transfer.

What is the difference between a headed shear stud and a shear connector?

A headed shear stud is the most common type of shear connector used in composite steel construction. It provides reliable shear resistance and is permanently welded to the steel member.

What welding process is used?

Headed shear studs are typically installed using drawn arc stud welding, which creates a full-strength metallurgical bond within milliseconds.

Can headed shear studs be used in column connections?

Yes. Headed shear studs are commonly used as shear connectors in column applications, including composite columns, embedded plates and structural reinforcement systems.

Do you provide customized sizes?

Yes. IKING supplies standard ISO 13918 sizes as well as customized diameters, lengths and packaging based on customer requirements.
